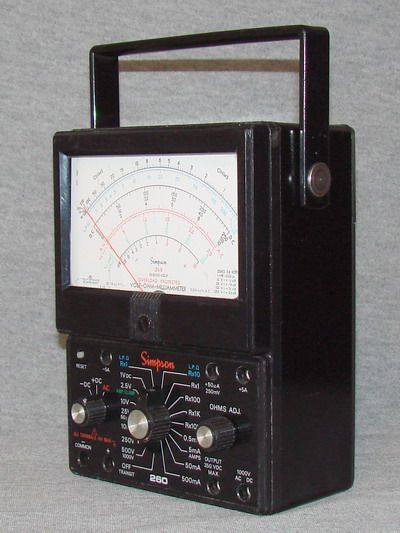

Simpson 260® Series 6XLP

Analog - VOM

Volt-Ohm-Milliammeter

Included with the Simpson 260-6XLP are the Catalog Number 00125 test leads & alligator clips,

operators manual, both batteries, and both fuses.

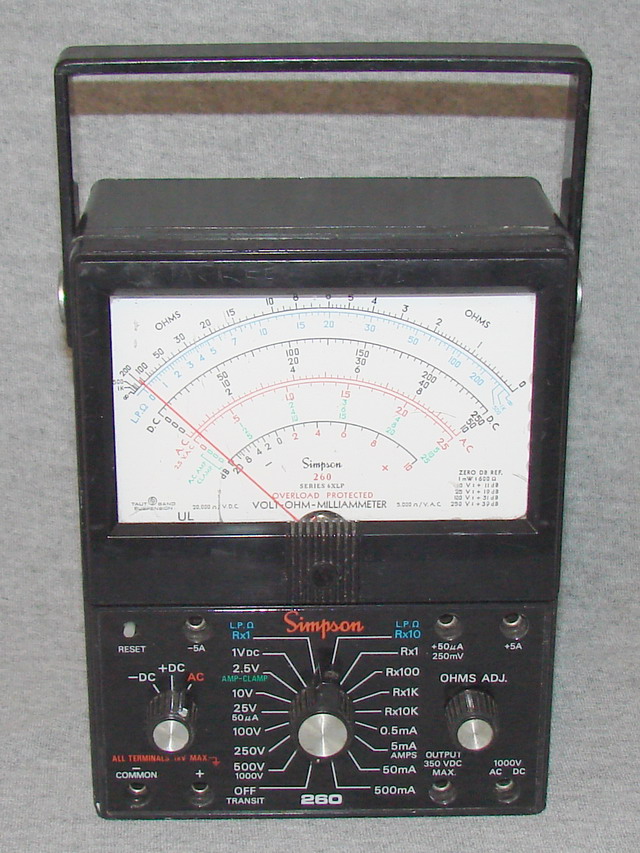

 The Simpson 260-6XLP has the Taut Band Suspension dial with the three Amp-Clamp scales.

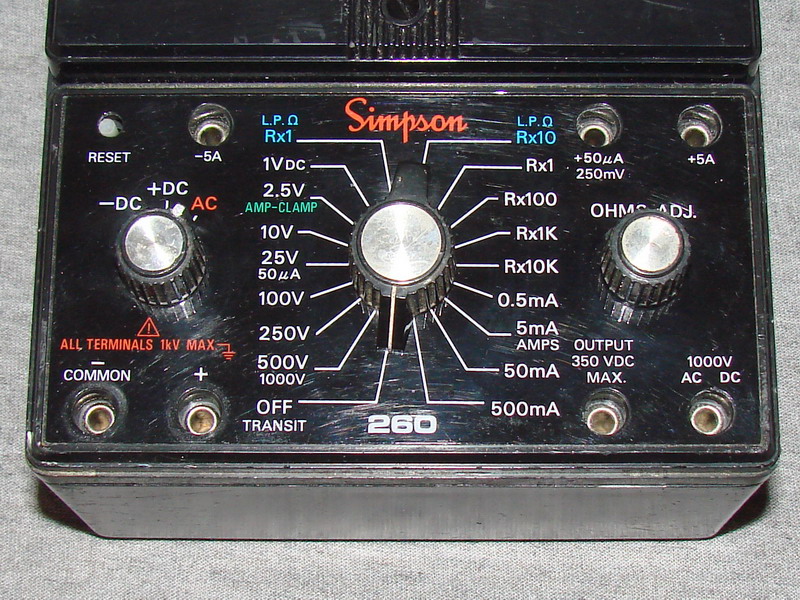

Controls include: Ohms zero adjustment, AC - DC - Select, a 18 position Function / Range

selector switch, and seven probe jacks.  This meter has an off/transit position on the function switch.

The Simpson 260-XLP has two additional "low power" ohms scales marked in blue, and the

 setting for the optional model 150-2 amp-clamp is marked in green.

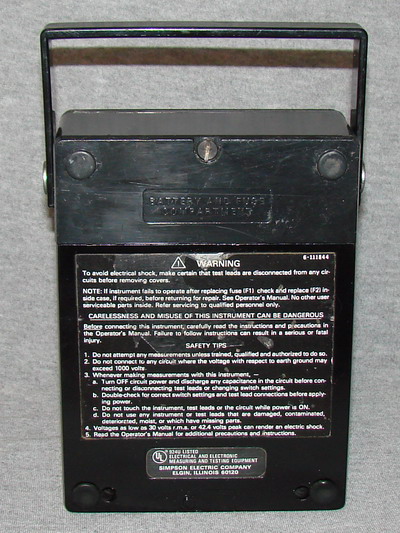

The back of the case has an "adapter lock" for use with "Add-A-Tester" accessories.

The rear case now has rubber feet instead of raised bumps at the four corners.

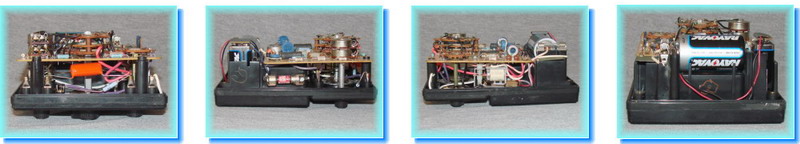

More inside views linked below.

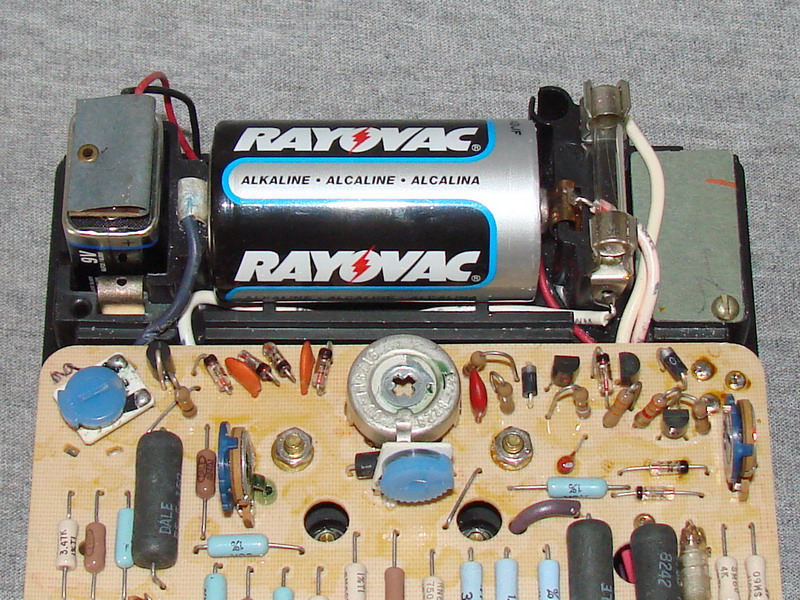

This model uses the NEDA 13 F "D" cell and NEDA 1604A (9 Volt) batteries combination.

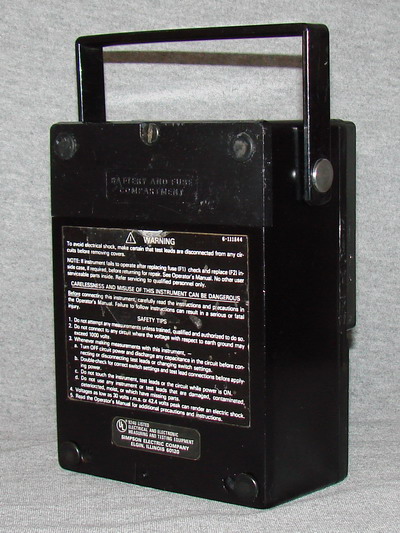

The Simpson 260 series 6XLP has the separate battery / fuse cover.

This allows you to change the batteries and one amp fuse without removing the entire back cover.

The back cover must be removed to change the 2 Amp fuse.

Case Size: 5¼ " x 7 " x 3⅛ "  -  Weight: 2¼ Pounds

Simpson 260-6XLP Specifications

DC VOLTAGE

Ranges 250mV, 1 V, 2.5V, 10V, 25V,100V, 250V, 500V, 1000V

Accuracy 2% of full scale * Sensitivity 20K per volt

AC VOLTAGE

Ranges 2.5V, 10V, 25V, 100V, 250V,500V, 1000V

Accuracy 3% of full scale * Sensitivity 5K per volt

Rated Circuit-To-Ground Voltage 1000V AC/DC Max

DECIBEL

5 Ranges -20 to +39dB * Reference 0dB= 1mW into 600Ω

DC CURRENT

Ranges 50μA, 0.5mA, 5mA, 50mA,500mA, 5A

Accuracy 1.0% full scale 50μA2.0% full scale, all other

Voltage Drop: (Nominal) 250 mV on 50μA/0.5mA/5A, 252mV on 5mA/50mA, 400mV on 500mA

STANDARD POWER RESISTANCE

Ranges Rx1, Rx100, Rx1K, Rx10K

Accuracy 2.5° of arc on Rx1, 2.0° of arc all other

Maximum Indication 0-2KΩ, 0-200KΩ, 0-2MΩ, 0-20MΩ

Open Circuit Voltage 1.5V, 1.5V, 1.5V, 9.0V

Short Circuit Current 250mA, 2.5mA, 250μA, 125μA

LOW POWER RESISTANCE

Ranges Rx1, Rx10

Accuracy 2.5° of arc on Rx1, 2.0° of arc on Rx10

Maximum Indication 0-1KΩ, 0-10KΩ

Open Circuit Voltage 100mV

Short Circuit Current 4.9mA, 490μA
