Simpson 260 Series 9SP

Analog - VOM

Volt-Ohm-Milliammeter

Simpson Catalog Number 12398



Certified to EN61010-1 to 600V, Category III

Case Size: 5 " x 7 " x 3"  -  Weight: 2 Pounds  -  2007 Price: $350.00

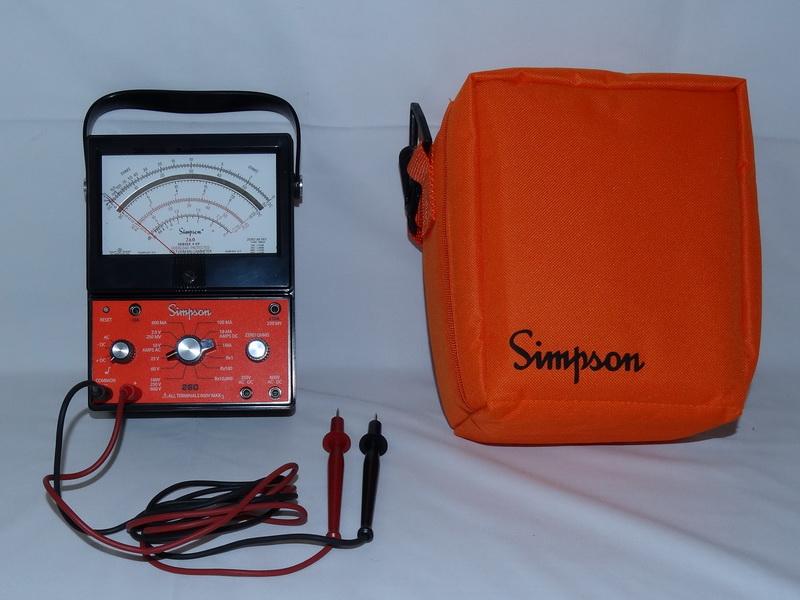

The above photograph is from Simpson Electric.

Simpson 260-9SP Specifications

DC VOLTAGE

Ranges 250mV, 2.5V, 10V ,25V, 60V, 100V, 250V, 600V

Accuracy 2% of full scale * Sensitivity 20K per volt

Rated Circuit-To-Ground Voltage 600V max.

AC VOLTAGE

Ranges 2.5V, 10V, 25V, 60V, 100V, 250V, 600V

Accuracy 3% of full scale * Sensitivity 5K per volt

Rated Circuit-To-Ground Voltage 600V max.

DECIBEL

-20 to +10dB /  -8 to +22dB / 0 to 30dB / 13 to 43dB

Reference 0dB= 1mW into 600Ω

DC CURRENT

Ranges 1mA, 10mA, l00mA, 600mA, 10A

Accuracy 2% of full scale - Voltage Drop: (Approx.) 250mV

AC CURRENT

0 to 10A

Accuracy 3% of full scale - Voltage Drop: (Approx.) 250mV

RESISTANCE

Ranges Rx 1, Rx 100, Rx 10K

Accuracy 2.5 of arc on R x 1, 2.0 of arc on R x 100 and R x 10,000
